Create a Hog project starting from a local project

This tutorial will show how to create a hog project starting from an example Vivado project (IBERT). For this tutorial we will use Hog version Hog2021.2-9

Step 1: create an example Vivado project

Let’s start our tutorial by switching to a new empty directory:

mkdir Example_project
cd Example_project

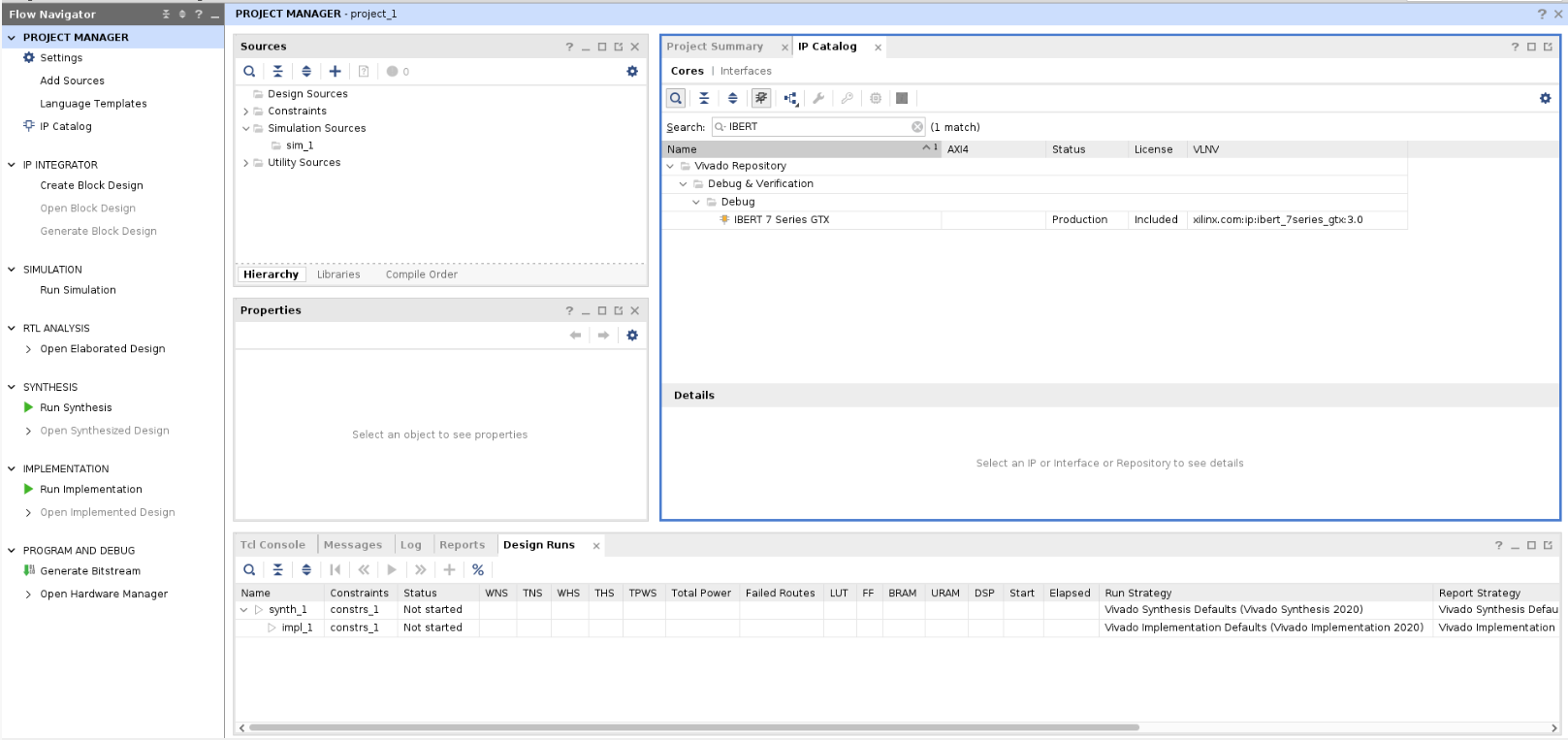

Now we open Vivado console and we create an empty RTL project, we leave everything as default and we select Kintex-7 KC705 Evaluation Platform in the Default Part panel. Now we go to the IP catalogue and we type IBERT in the search bar and we click on IBERT 7 Series GTX.

We leave the IP configuration as default, and we click on IP location. We change the IP directory to be IP (we create the new directory on the GUI).

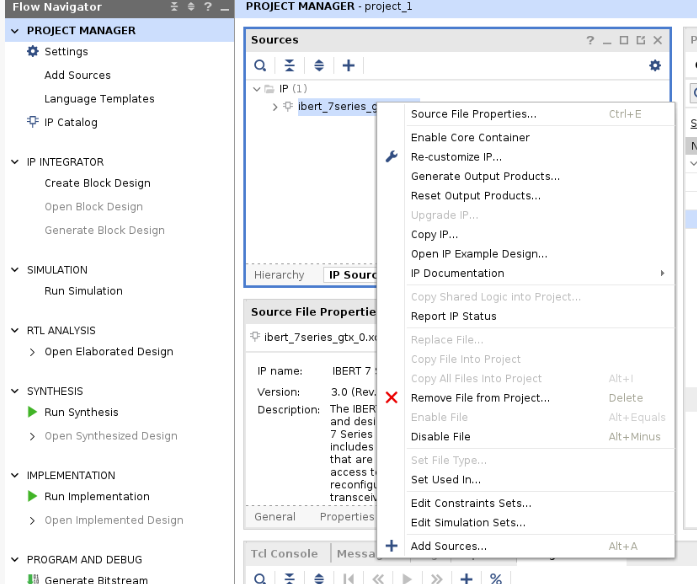

Now we click on Done and we skip the “Generate Output Product”. Now we go on IP Sources tab, we right click on the IP and we click on Open IP Example Design.

We can now close the first project (project_1).

If we browse the new project, we notice that there are:

  • 1 verilog file ibert_7series_gtx_0_ex/imports/example_ibert_7series_gtx_0.v

  • 1 IP (xci) IP/ibert_7series_gtx_0/ibert_7series_gtx_0.xci

  • 1 constraint file (xdc) ibert_7series_gtx_0_ex/imports/example_ibert_7series_gtx_0.xdc

  • 2 txt files ibert_7series_gtx_0_ex/imports/example_top_verilog.txt and ibert_7series_gtx_0_ex/imports/xdc_7ser_gtx.txt

Step 2: create and initialise a git repository

It’s time to create a new git repository and add our project files on it. We start by creating a new blank project on CERN gitlab by clicking here.

We select Example_project as project name and we click on Create Project.

Now we copy the project URL, e.g. https://gitlab.cern.ch/$USER/example_project.git, that will be added as our repo URL. Now, on a shell, we type:

git init
git remote add origin https://gitlab.cern.ch/$USER/example_project.git

We can now add the source files (not the project files) on the git repository.

git add ibert_7series_gtx_0_ex/imports/example_ibert_7series_gtx_0.v
git add IP/ibert_7series_gtx_0/ibert_7series_gtx_0.xci
git add ibert_7series_gtx_0_ex/imports/example_ibert_7series_gtx_0.xdc
git add ibert_7series_gtx_0_ex/imports/example_top_verilog.txt ibert_7series_gtx_0_ex/imports/xdc_7ser_gtx.txt
git commit -m "First commit, imported project files"

Step 3: import Hog submodule and create Hog project

Now that we have a project in a git repository, we can convert it to a Hog project, to benefit from all the Hog functionalities.

The first step will be to add Hog submodule in the root path of your repository, preferably using its relative path.

The relative path can be found from out repository URL:

so in our case we will have to add the Hog submodule as:

  git submodule add ../../hog/Hog.git
  cd Hog
  git checkout Hog2021.2-9
  cd ..

Note

If you are working on gitlab.com, we advice to add the Hog submodule using its gitlab.com mirror.

To add the repository using the relative path, you should then do

  git submodule add ../../hog-cern/Hog.git
  cd Hog
  git checkout Hog2021.2-9
  cd ..

Next step will be to create the text files containing all project properties and list of project files, as required by hog. We have to create the following files:

  • Top/<project name>/hog.conf containing all the project properties, such as PART, Synthesis Strategy…

  • Top/<project name>/list/<library>.srccontaining all the source files (VHDL, verilog, IPs, etc.) that will be put in the VHDL library <library>

  • Top/<project name>/list/<simulation_set>.sim containing all the simulation files that will be put in the simulation set <simulation_set>

  • Top/<project name>/list/<constraints_name>.con containing all the constraints files

We can let Hog handle the creation of the list files automatically, by launching source Hog/Init.sh (only in Vivado). However, in our case, we will create all the list files manually.

So we start by creating hog.conf:

mkdir -p Top/Example_project/list
vim Top/Example_project/hog.conf

and we fill it with all the properties required by our project. In our case, we left almost everything as default, so we’ll only have to set the PART property, which is a main property, according to hog manual:

#vivado
[main]
PART=xc7k325tffg900-2

Now we add all the project files to hog list files. We start by adding all the source files in their HDL library. Since we have only IPs and verilog files, that can’t be associated to an HDL library, the library name won’t be important. So we can add all the files in a single src file called work.src

vim Top/Example_project/list/work.src

Here we add all our files apart from the constraints and simulation ones, and we have to specify which one is the top file:

ibert_7series_gtx_0_ex/imports/example_ibert_7series_gtx_0.v top=example_ibert_7series_gtx_0
IP/ibert_7series_gtx_0/ibert_7series_gtx_0.xci
ibert_7series_gtx_0_ex/imports/example_top_verilog.txt
ibert_7series_gtx_0_ex/imports/xdc_7ser_gtx.txt

Finally, we add the constraints in a file called constraints.con:

vim Top/Example_project/list/constraints.con

ibert_7series_gtx_0_ex/imports/example_ibert_7series_gtx_0.xdc

We now add all the files we just created on git and we created a new tag called v0.0.1 as required by Hog:

git add Top/Example_project/hog.conf
git add Top/Example_project/list/work.src
git add Top/Example_project/list/constraints.con
git commit -m "Converted project to hog project"
git tag v0.0.1 -m "First hog tag"

We can now create the Hog project:

./Hog/CreateProject.sh Example_project

The new project will be created in Projects/Example_project/Example_project.xpr. We can open it and confront with the old one; we notice that they are identical.

We can finally build the project by running

./Hog/LaunchWorkflow.sh Example_project

Step 4: git push

Now we push everything on git:

git checkout -b Test_branch
git push origin Test_branch
git push --tags
